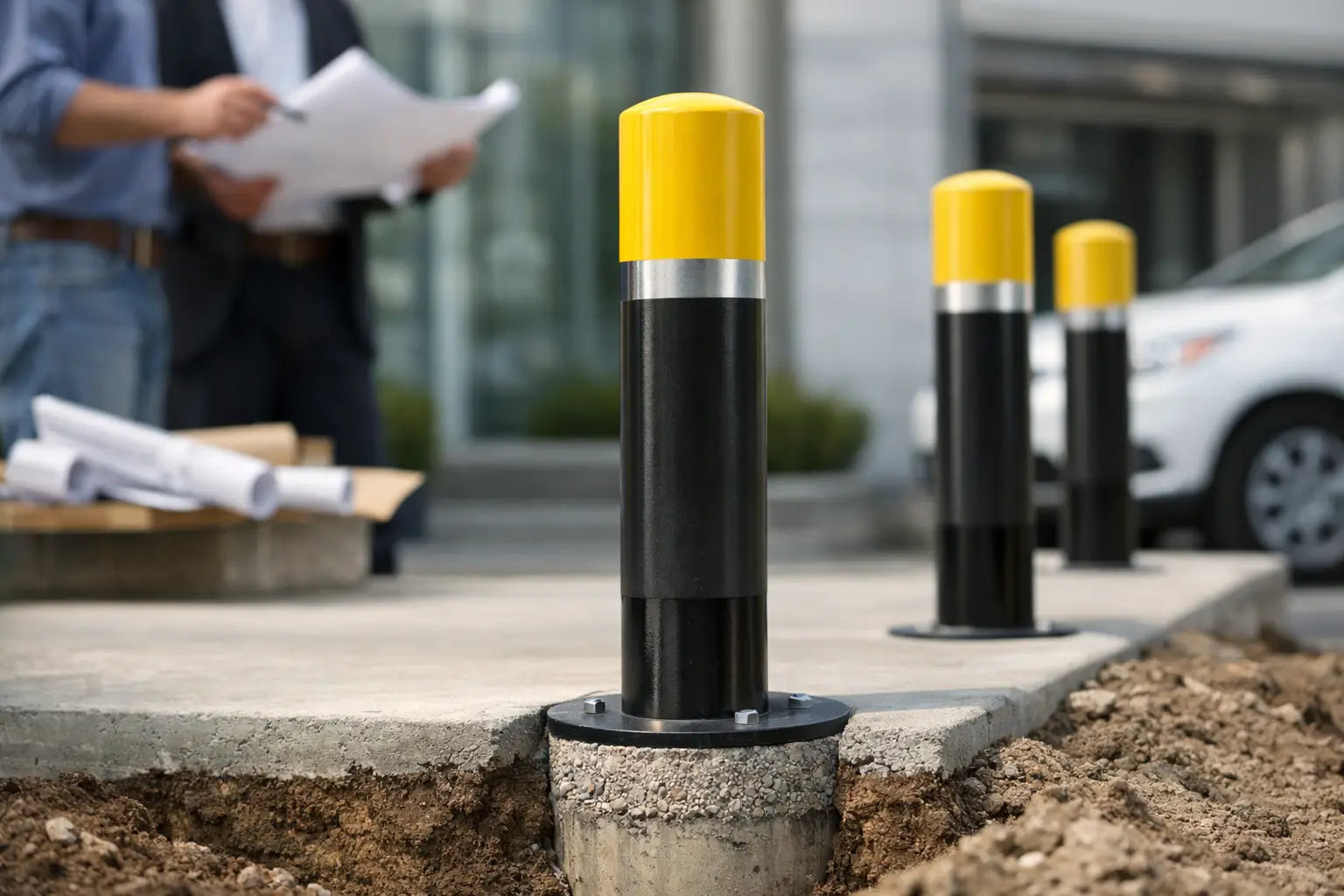

Bollard Foundation Design Guide for Safer Sites

A bollard is only as reliable as the concrete holding it in place. A heavy steel post can look substantial above grade, but an undersized footing, poor soil, or shallow embedment can turn a protection system into an expensive failure. This bollard foundation design guide gives contractors, facility teams, and project managers the practical factors to address before concrete is ordered.

Foundation requirements are not one-size-fits-all. A post protecting a storefront from parking errors is not designed like a bollard controlling access at a warehouse gate. Vehicle speed, expected impact, bollard type, soil conditions, frost depth, and local code requirements all change the foundation design.

Start With the Protection Requirement

The first question is simple: what must the bollard stop or control? A visual traffic guide, a parking control post, and a vehicle-impact barrier serve different purposes. Foundation design must match the actual risk, not just the appearance of the installation.

For low-speed parking areas, a properly embedded steel bollard may be intended to deter drivers, protect a corner, or keep vehicles out of a pedestrian zone. At loading docks, fuel areas, building entrances, utility equipment, and warehouse racking, the consequence of impact is higher. Those locations often require larger-diameter posts, deeper foundations, and an engineered layout.

High-security or anti-ram applications are a separate category. Do not assume a standard pipe bollard with a larger concrete footing provides certified crash protection. Where a project requires a defined vehicle rating, use a tested system and follow its engineered installation details exactly. Foundation geometry, reinforcement, spacing, and surrounding slab conditions can all be part of that tested assembly.

Choose the Right Bollard Type First

Foundation design follows the product selection. An in-ground fixed bollard transfers force directly into a concrete footing and is commonly used for permanent perimeter protection. Surface-mounted bollards rely on anchors and an existing concrete slab, so their performance depends heavily on slab thickness, concrete strength, anchor design, edge distance, and reinforcement.

Removable and collapsible bollards require purpose-built sleeves, receivers, or mounting assemblies. Their foundations need to keep the hardware aligned, drain properly, and withstand repeated use. A loose receiver or a footing that settles creates operating problems quickly.

Steel pipe bollards are frequently concrete-filled after installation. The fill improves stiffness and durability, but it does not replace a correctly sized below-grade foundation. Decorative HDPE or stainless steel covers are installed over the structural post. They improve visibility and finish, but they are not structural components and should never be used to determine foundation capacity.

Size the Footing for Loads, Soil, and Frost

For many standard in-ground steel bollards, installers use a cylindrical concrete footing that extends below grade. The diameter and depth must resist overturning when a vehicle pushes on the exposed post. A taller exposed bollard creates more leverage, while a larger post and deeper footing improve resistance.

As a practical starting point, common light-duty applications often use foundations in the range of 12 to 18 inches in diameter and approximately 36 to 48 inches deep. These dimensions are not a universal specification. They may be inadequate for tall bollards, weak soils, steep grades, heavy vehicle exposure, or locations subject to significant frost movement.

In northern climates, the footing should extend below the local frost line where required. Frost heave can lift or tilt shallow installations, especially where drainage is poor. This matters in parking lots and exterior pedestrian areas because even a small amount of movement can affect spacing, appearance, and the ability of a bollard to intercept a vehicle as intended.

Soil matters just as much as depth. Dense, well-drained granular soil behaves differently from wet clay, loose fill, or disturbed soil around a new building. If the installation area contains questionable fill, underground utility backfill, high groundwater, or a history of settlement, have the foundation evaluated by a qualified engineer. Concrete alone cannot compensate for unstable bearing conditions.

Confirm Placement Before Excavation

A bollard placed in the wrong location will not protect the asset, regardless of footing size. Establish the vehicle path, turning radius, overhang, and likely impact direction before marking holes. Protect the object without creating a new obstruction for pedestrians, accessible routes, doors, fire lanes, or vehicle circulation.

Storefront and building protection bollards are commonly set far enough from the wall to prevent a vehicle from reaching it, while still leaving room for maintenance and drainage. Equipment protection needs a similar clearance so forklifts, carts, and service personnel can work around the protected asset. Layout should also account for bollard spacing. Large gaps may allow a vehicle to pass between posts, while overly tight spacing can create access and snow-removal issues.

Call for utility locating before any excavation. Electrical conduits, gas lines, irrigation, communications, drainage, and post-tensioned concrete can all create costly or dangerous conflicts. Never treat a parking lot as clear ground simply because there are no visible utilities.

Concrete and Reinforcement Are Part of the System

Use concrete appropriate for exterior structural work and the local climate. The project specification or engineer should define compressive strength, air entrainment where freeze-thaw exposure applies, and any mix requirements. Pouring leftover or improperly mixed concrete into a bollard hole is not a professional installation method.

Reinforcement depends on the footing design and loading condition. It may be required for larger footings, higher-impact locations, grouped bollard systems, or installations near slab edges. Reinforcing steel should be positioned correctly and maintained with proper concrete cover. Steel placed against soil will corrode and does little to deliver the intended strength.

Set the bollard plumb before the concrete takes its initial set. Brace it as needed and verify elevation so the final exposed height is consistent across the site. If the steel pipe will be concrete-filled, follow the product or project specification for fill height and finish. Cap the bollard to keep water out. Water inside an uncapped post accelerates corrosion and can split the post during freeze-thaw cycles.

Account for Existing Concrete and Surface Conditions

Many failures begin when an installer assumes the surrounding pavement is part of the foundation. Asphalt is not structural support for a vehicle-impact bollard. It should be neatly cut back so the concrete footing bears against suitable soil and the installation can be finished correctly.

Where a bollard is close to an existing concrete slab, curb, or foundation wall, avoid undermining the adjacent structure. The footing excavation may need to be revised, or the project may require a different bollard type. Surface-mounted systems can be appropriate when the slab has been designed and verified for the anchors and expected loads. They are not a shortcut for a location where excavation is difficult.

Drainage deserves attention. Grade the finished surface to shed water away from the post and nearby building elements. In areas with frequent de-icing chemicals, use corrosion-resistant materials and maintain damaged coatings promptly. Galvanized steel, stainless steel options, and protective covers each have a role, but material selection should reflect the actual exposure.

Do Not Treat High-Risk Sites as Standard Installations

A warehouse entrance with forklift traffic, a school pickup zone, a municipal facility, and a retail storefront may all use bollards, but their loading conditions are not interchangeable. Higher-risk sites should have a documented protection plan that identifies the protected asset, vehicle type, speed, approach angle, and required performance.

This is especially true when bollards protect occupied buildings, fuel infrastructure, public gathering areas, or critical utilities. Engage a licensed engineer when the project is outside routine low-speed site protection, when local authorities require stamped details, or when there is any question about impact performance. The cost of professional design is minor compared with a failed barrier and the resulting property damage or injury claim.

Installation Checks That Prevent Rework

Before the crew leaves, verify that every bollard is plumb, consistently spaced, and set to the specified exposed height. Check that concrete has been placed without voids, that the site is protected while the footing cures, and that covers, caps, reflective bands, or other finishes are installed only after the structural work is complete.

Document the footing dimensions, concrete delivery information, reinforcement where used, and final layout. This record helps facility teams plan future repairs and gives owners a clear installation history. It also prevents a later contractor from cutting into a footing while adding signs, curbs, or utilities.

Bollard Canada supplies steel bollards, covers, anchors, and site protection products for commercial and institutional projects. Match the product to the threat, then give it the foundation it needs. A properly designed footing is not hidden overhead - it is the part of the installation that makes the protection credible when a vehicle does not stop.
