How to Protect Loading Docks From Vehicle Damage
A loading dock is built to take daily punishment, but its doors, levelers, corners, utility lines, and pedestrian routes are not. One misjudged backing maneuver can damage a dock door, crush a guardrail, disable a leveler, or put a worker in the path of a trailer. Knowing how to protect loading docks starts with separating vehicles from the assets and people that keep the operation moving.
The right protection system is not one product placed at random. It is a coordinated plan built around traffic patterns, vehicle types, dock geometry, impact risk, and maintenance access. For busy warehouses, distribution centers, retail back rooms, and industrial facilities, physical protection pays for itself by preventing downtime and expensive repairs.
Start With a Dock Risk Assessment
Before selecting bollards or barriers, inspect how vehicles actually move through the dock area. Site plans are useful, but real-world traffic behavior matters more. Watch where trucks turn, where trailers drift while backing, where forklifts cross, and where drivers cut corners to save time.
Identify every fixed asset that could be struck. Common exposure points include dock door tracks, building corners, man doors, overhead door controls, electrical panels, gas meters, fire connections, dock leveler controls, and exposed piping. Also review pedestrian paths. A painted walkway is useful for organization, but paint alone will not stop a forklift, yard truck, or delivery vehicle.
Impact severity determines the protection required. A hand pallet truck operating near a doorway presents a different risk than a 53-foot trailer backing into a high-volume shipping lane. Light-duty visual guidance may be enough in one area, while another needs deeply embedded steel bollards or a heavy-duty guardrail system.
How to Protect Loading Docks With Physical Barriers
Physical barriers should be selected by the object being protected and the type of vehicle likely to make contact. The goal is to stop or redirect impact before it reaches the building or equipment.
Protect building corners and dock door edges
Building corners are frequent strike points, especially where trailers turn tightly beside the dock face. Install steel bollards in front of exposed corners and at the outside edges of dock door openings. Bollards should be positioned far enough from the structure to prevent contact, while still leaving required clearance for trailers, forklifts, carts, and maintenance crews.
For high-impact locations, use steel pipe bollards set in concrete. Surface-mounted bollards may be appropriate where excavation is not possible, but they depend heavily on concrete condition, anchor design, and expected impact force. They are not a substitute for embedded protection in severe-impact areas.
Dock door tracks and frame components may also need protection. A properly positioned bollard can prevent a trailer or forklift from clipping the side of the opening without interfering with normal loading activity.
Guard utilities, controls, and equipment
Electrical panels, dock controls, fire department connections, meters, compressors, and exposed mechanical equipment should never be left unprotected in an active truck or forklift zone. A single bollard may protect a narrow object. A wider guardrail or multi-post barrier is usually the better choice for equipment with a larger footprint.
Use barriers that allow technicians to access the equipment without removing protection every time service is needed. This is where spacing matters. Protection that blocks maintenance becomes a problem operators work around, and workarounds create new safety risks.
Separate pedestrians from vehicle movement
Loading docks are active shared spaces. Workers walk between trailers, staging areas, offices, and waste enclosures while forklifts and trucks operate nearby. Separate foot traffic from vehicle traffic with steel guardrails, handrails, fixed bollards, and clearly defined crossing points.
Where pedestrian doors open directly into a loading area, install protective bollards on both sides of the doorway. If workers must cross a forklift route, direct them to a designated crossing with high-visibility markings and physical channelization. Do not rely on drivers seeing pedestrians in congested areas with blind spots.
Control Trailer Movement at the Dock Face
Bollards protect fixed assets, but dock-face protection also depends on controlling the trailer itself. Trailer movement can damage the building, compromise loading operations, and create a serious fall or separation hazard for workers and equipment.

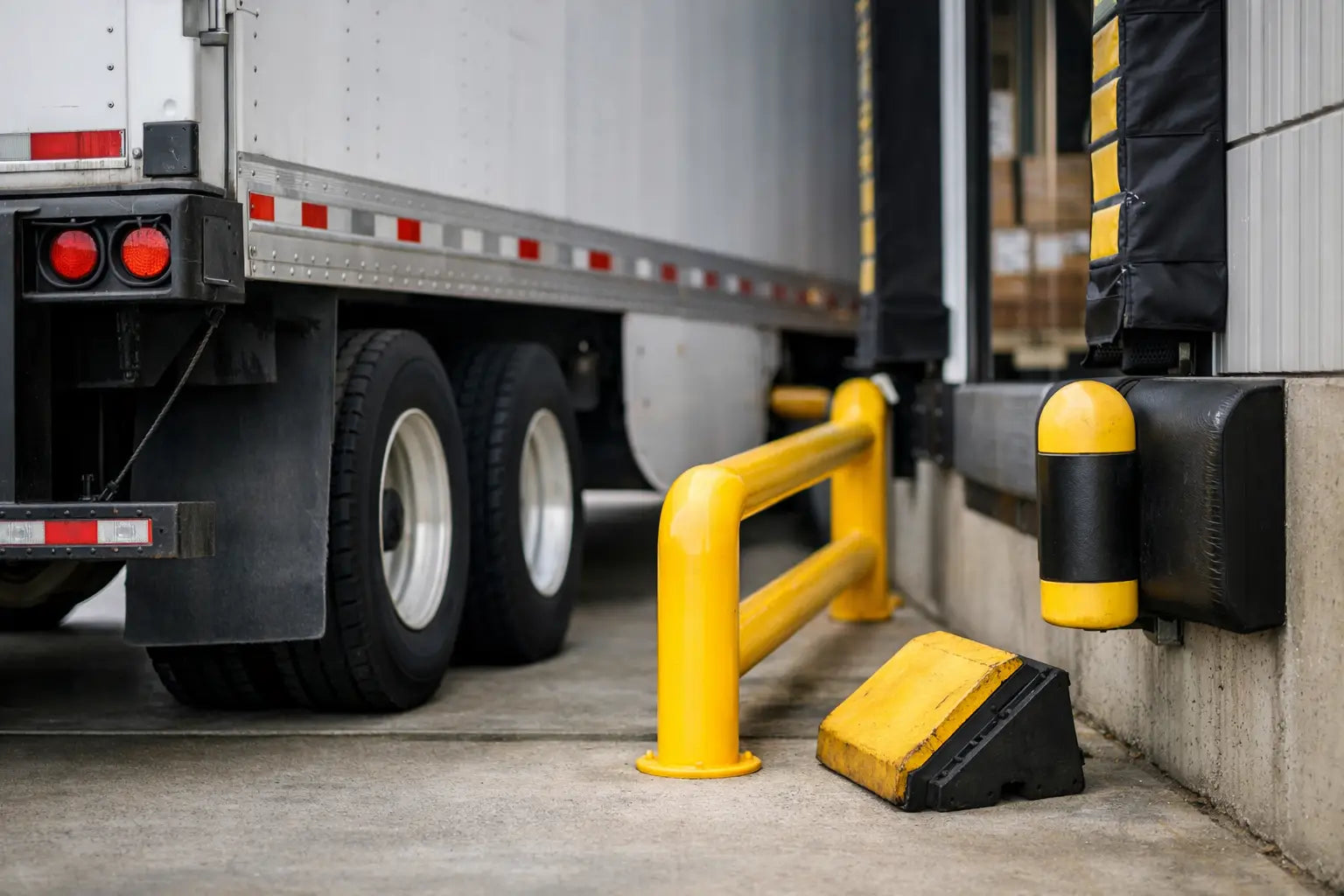

Dock bumpers absorb repeated contact between trailers and the dock face. Select the bumper type and projection based on trailer configuration, dock layout, and frequency of use. Worn bumpers should be replaced before they allow trailers to contact the wall, dock leveler frame, or door components.
Vehicle restraints, wheel chocks, and clear dock procedures help prevent trailers from pulling away early or creeping during loading. The best choice depends on the fleet mix and operating model. A high-volume facility with varied carriers may need a more controlled restraint system than a smaller dock that handles occasional scheduled deliveries.
Adequate lighting is part of this system. Drivers need to see the dock approach, bumper line, pedestrians, and obstacles in rain, darkness, and glare. Reflective tape on bollards, barriers, and clearance structures improves visibility, but it should support physical protection, not replace it.
Use Traffic Control to Prevent Impacts Before They Happen
A protected dock is easier to operate when drivers receive clear instructions before they reach the danger zone. Mark travel lanes, stopping points, no-parking areas, pedestrian routes, and trailer approach paths. Keep signs direct and visible from the driver's position.
Delineators, flexible posts, wheel stops, and pavement markings can organize low-speed traffic and show drivers where not to travel. These products are valuable for guidance, but they are not impact-rated barriers. Use them to supplement steel protection, not as the primary defense for a building corner or utility connection.
Review staging practices as well. Pallets, dumpsters, carts, and empty trailers often migrate into turning areas. What begins as temporary storage can force drivers into tighter maneuvers and create blind spots. Maintain clear setback zones around dock doors, fire access points, and turning paths.
Choose Materials That Match the Environment
Steel bollards and guardrails are the standard for high-impact loading dock protection. Galvanized steel is a practical choice for outdoor environments where corrosion resistance is required. Stainless steel is well suited to locations where appearance, sanitation, or superior corrosion resistance matters, including food-service, pharmaceutical, and public-facing facilities.
HDPE bollard covers improve visibility and protect the finish of steel bollards from weather, salt, and everyday scuffs. They are useful for facilities that need a clean, consistent appearance, but the cover does not determine the bollard's impact capacity. The steel post, wall thickness, embedment depth, concrete foundation, and installation quality do that work.
Color selection should support site visibility. Bright yellow remains common in industrial traffic areas because it is easy to see. In lower-light locations, reflective bands provide added visual warning. For facilities with brand or architectural requirements, custom colors may be appropriate as long as visibility is not compromised.
Installation Details Determine Performance
A heavy-duty product installed incorrectly will not deliver heavy-duty protection. Confirm underground conditions before digging. Utilities, drainage systems, post-tension slabs, frost conditions, and existing concrete thickness all affect the installation method.
For embedded bollards, depth and concrete footing size should be determined by the bollard size, soil conditions, and anticipated impact. For surface-mounted systems, verify the slab is structurally suitable and use anchors engineered for the application. Do not install impact barriers on cracked, thin, or deteriorated concrete without addressing the base condition.
Maintain operational clearance around every barrier. A bollard placed too close to a dock approach can become a hazard for trailer swing. A guardrail installed too close to a pedestrian route can restrict emergency movement. Protection has to stop vehicles without making normal work harder.
Inspect Dock Protection Before It Fails
Loading dock protection should be inspected as part of regular facility maintenance. Look for bent posts, loose anchors, cracked concrete, missing reflective bands, damaged covers, worn dock bumpers, and barriers that have been pushed out of alignment. A barrier that has absorbed a significant strike may need replacement even if it is still standing.
Use this practical inspection checklist after an impact or during scheduled reviews:
- Check bollards and guardrails for bends, cracks, movement, or damaged welds.
- Inspect concrete around embedded posts and anchors for splitting, spalling, or pullout.
- Verify dock bumpers still provide adequate projection and are securely mounted.
- Confirm pedestrian routes, signs, and pavement markings remain visible and unobstructed.
- Remove stored materials that interfere with turning clearance or emergency access.
A loading dock should be designed for predictable mistakes, not perfect driving. Protect the corners, controls, doors, utilities, and walking routes that keep your facility operating, then inspect that protection often enough to catch damage before the next truck does.
