Bollard Installation Guide for Commercial Sites
A bollard that is installed in the wrong location, set in weak concrete, or placed over an unverified utility line can create a costly problem instead of preventing one. This bollard installation guide is built for commercial sites where vehicle movement, pedestrian safety, access control, and property protection must work together.
The right installation method depends on the bollard type and the risk at the site. A warehouse entrance, retail storefront, school drop-off lane, parking garage, and high-security perimeter do not require the same product or footing. Start with the threat, the traffic pattern, and the substrate. Then select the bollard and installation method to match.
Start With the Protection Requirement
Before marking locations, define what the bollards must do. Fixed embedded steel bollards are a common choice for protecting loading doors, gas meters, storefronts, racking, and utility equipment from low-speed vehicle strikes. Removable or retractable bollards suit controlled access points where authorized vehicles need entry. Surface-mounted models can work where excavation is impractical, but their performance depends heavily on the existing slab, anchor design, and intended impact exposure.
Anti-ram or crash-rated bollards are a separate category. They require engineered systems, specific foundations, and installation that follows the tested assembly. A standard pipe bollard in concrete is not a substitute for a crash-rated barrier. Where the project involves a known hostile-vehicle threat, high-speed approach, critical infrastructure, or a formal security requirement, involve the project engineer and security consultant before products are ordered.
Also establish whether the goal is impact resistance, visual guidance, access control, or all three. A brightly colored cover can improve visibility and reduce minor contact, but it does not add structural stopping power. Likewise, a heavy steel bollard may protect an asset but still need reflective tape or a cover to remain visible in poor light.
Plan the Bollard Layout Before Excavation
Bollard layout is where many otherwise sound projects fail. Too much spacing allows a vehicle through. Too little spacing blocks accessible routes, delivery access, snow removal, or emergency operations. The installation crew should work from a site plan, not from rough field judgment.
Measure the protected asset, the expected vehicle path, turning movements, door swings, and pedestrian routes. Locate bollards far enough from the item being protected that a struck bollard does not transfer damage into the equipment, wall, or storefront. At the same time, keep the protective line close enough that a vehicle cannot pass around its ends.
For pedestrian protection, maintain required clear width and confirm local accessibility requirements. Do not place bollards where they force people into traffic lanes or create a trip hazard at a curb transition. At building entries, consider automatic door clearances, fire exits, delivery routes, and wheelchair access before finalizing the line.
Typical spacing is project-specific. It depends on bollard diameter, vehicle size, access requirements, and local code. A wide opening may be acceptable at a service entrance but inappropriate at a storefront. The governing principle is simple: design the opening for authorized users, not for the vehicle you are trying to stop.
Verify Utilities and Site Conditions
Call for utility locates before digging. This is not a formality. Underground electrical, gas, water, communications, irrigation, drainage, and private site services may run directly through a proposed bollard line. Review available as-built drawings, but do not rely on drawings alone.
Inspect the existing pavement and soil conditions as well. Asphalt thickness, slab depth, fill material, frost depth, groundwater, and drainage can affect the foundation approach. In cold climates, frost movement and poor drainage deserve special attention. Water that sits around a footing can shorten the service life of coatings and create winter maintenance issues.
Embedded Bollard Installation Guide
Embedded steel bollards are the standard choice for many exterior commercial applications because the footing provides dependable resistance and long-term stability. Galvanized steel is widely used where corrosion resistance matters. Stainless steel may be selected where appearance, washdown conditions, or a more refined architectural finish is required.
Begin by setting out the centerline and checking each position against the approved layout. Use a string line or laser where a straight, consistent row matters. Small alignment errors become obvious when several bollards are installed along a storefront or drive lane.
Excavate each hole to the required diameter and depth for the selected bollard and local conditions. The footing dimensions should be based on the product specification, anticipated vehicle exposure, soil conditions, and applicable engineering requirements. Do not assume every pipe bollard uses the same hole size. A larger diameter post or a higher-risk location may require a substantially larger concrete footing.
Set the bollard plumb and at the correct finished height. Confirm that the visible height is consistent across the row and that the top is suitable for the application. Concrete-filled steel pipe bollards are commonly used for higher-duty protection, while some applications may use an open pipe with a cap depending on the specification. Follow the selected product details rather than mixing methods in the field.
Place concrete around the bollard in lifts as needed, consolidating it to reduce voids. Recheck plumb before the concrete begins to set. Finish the top of the footing so water sheds away from the post instead of pooling at the steel-to-concrete transition. Where pavement will be restored around the bollard, keep the final grade neat and flush with the surrounding surface.
Do not place the bollard into fresh concrete and treat it as ready for vehicle contact. Concrete needs time to cure. Follow the concrete supplier's recommendations, project specifications, and weather conditions before exposing the installation to traffic or impact risk. Cold weather, high moisture, and mix design can all extend the practical cure period.

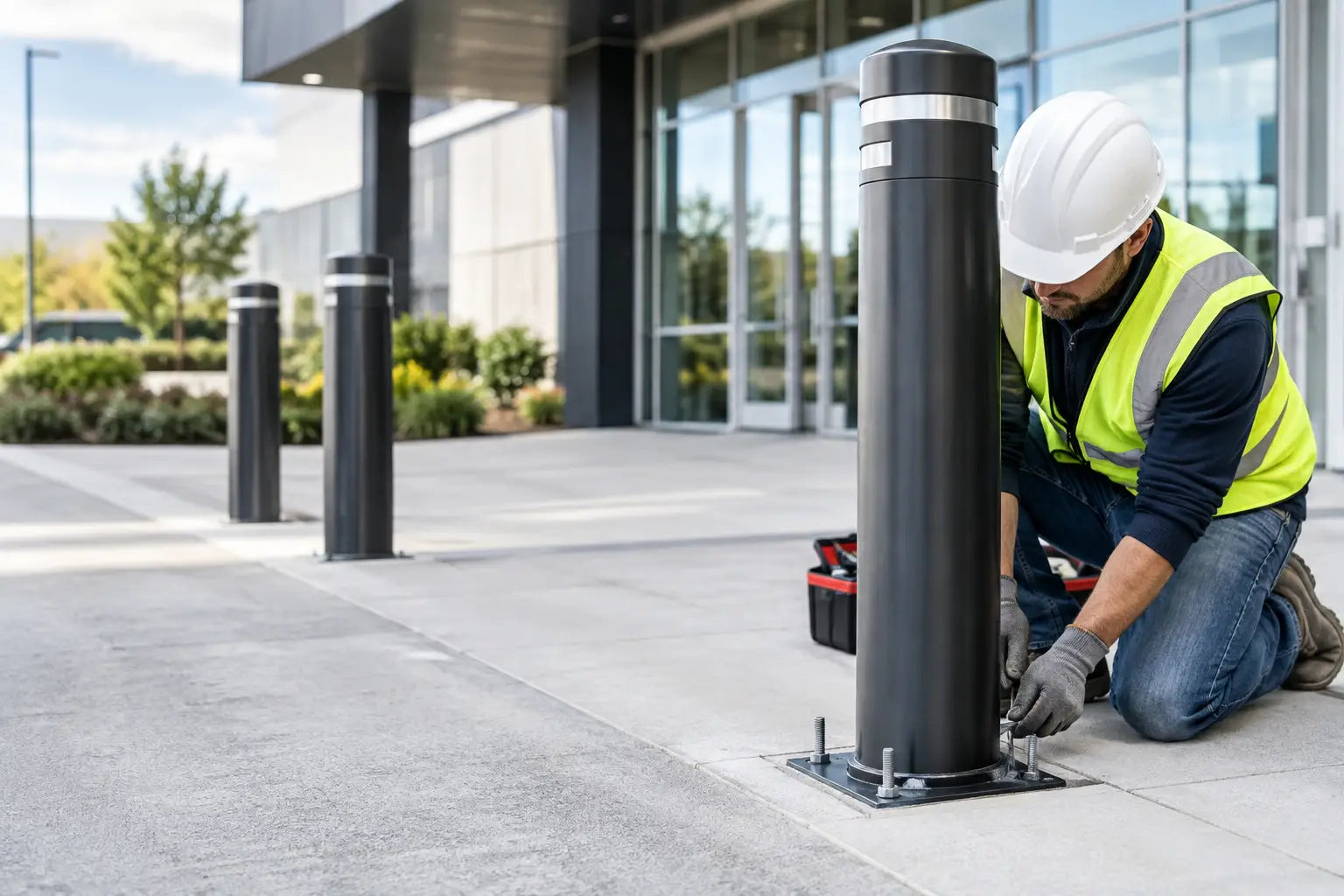

Surface-Mounted and Removable Bollards
Surface-mounted bollards are not simply faster versions of embedded bollards. They are a different installation system. The base plate, anchor bolts, concrete slab, reinforcement, and edge distance all matter. A surface mount installed on thin, deteriorated, or unreinforced concrete can fail by pulling anchors, cracking the slab, or breaking out concrete under load.
Before installing a surface-mounted unit, verify slab thickness and condition. Scan for reinforcing steel, post-tension cables, electrical conduit, and embedded services before drilling. Use the anchor type, hole diameter, embedment depth, tightening sequence, and torque values specified for the system. If the site requires meaningful impact resistance, confirm that the selected mounting assembly is approved for that exposure.
Removable bollards require equal discipline. The receiver or ground sleeve must be installed at the correct elevation, aligned with the access lane, and protected from debris. A poorly drained receiver can fill with water, sand, ice, or gravel and become difficult to use. Confirm that the locking mechanism remains accessible and that the removed bollard has a designated storage location.
Finish for Visibility and Service Life
A bollard installation is not complete when the concrete hardens. Finish selection affects visibility, maintenance, and the life of the steel beneath it. Galvanized finishes help defend against corrosion. HDPE bollard covers provide a clean, highly visible exterior that resists cracking, chipping, and repainting demands common with painted steel. Reflective tape can improve nighttime recognition in parking areas, drive lanes, and garages.
Install covers only after the bollard is clean, properly positioned, and ready for final presentation. Covers should fit the post diameter and intended visible height. If a cover is cut poorly around a base or sits unevenly, the entire installation looks unfinished. In high-contact areas, inspect covers and reflective markings regularly and replace damaged components before visibility is lost.
Bollard Canada supplies commercial-grade bollards, covers, anchors, and site protection products for projects that need consistent materials and clear product selection. Match the component to the site requirement instead of forcing one standard bollard into every application.
Inspect Before Opening the Area
Before reopening the lane, walkway, or entrance, inspect the completed work. Confirm the bollards are plumb, aligned, and set at consistent heights. Check that concrete has cured as required, anchors are properly tightened, caps are secure, and the surrounding pavement is restored without gaps or trip points.
Look at the installation from a driver's position as well as from the sidewalk. A bollard may be correctly installed but difficult to see against a dark wall, in a shadowed garage, or beside competing signs. Add covers, reflective treatment, markings, or lighting where the site calls for better recognition.
A well-installed bollard is simple by design: the right product, in the right place, on the right foundation. Get those decisions right before the first hole is drilled, and the finished line will protect the site without disrupting the people and vehicles that need to move through it.
