How to Install Parking Wheel Stops Correctly
A wheel stop installed a few inches out of position can create the same problem it was meant to prevent: vehicle overhang into a sidewalk, a damaged curb, or a tripping hazard in a busy parking area. To install parking wheel stops correctly, start with the parking geometry, select the right anchoring method for the surface, and verify every unit is aligned before drilling begins.
For commercial properties, garages, warehouses, schools, medical facilities, and retail sites, wheel stops are a simple but effective form of parking control. They establish a consistent vehicle stopping point, protect building fronts and landscaped areas, and help preserve pedestrian clearance where parking spaces meet walkways.
Plan the Wheel Stop Layout Before Installation
Wheel stops should not be placed by visual estimate alone. Review the site plan, stall dimensions, curb locations, sidewalks, accessible routes, loading areas, and vehicle mix before marking the pavement. A compact office parking lot and a truck-heavy industrial yard do not need the same setback or product specification.
The primary objective is to stop the vehicle without allowing the front bumper, rear overhang, or cargo area to extend into a protected space. This is especially important near storefronts, fire lanes, charging equipment, pedestrian crossings, fencing, utility cabinets, and building columns.
Confirm the required setback with local regulations, project drawings, and accessibility requirements. Some municipalities and site standards specify exact placement dimensions. Where no fixed requirement applies, use the vehicle profile and available pedestrian clearance to determine placement. The right position depends on the stall depth, curb height, vehicle size, and whether vehicles will pull forward or back into the space.
Before ordering materials, identify the pavement condition. Sound concrete and sound asphalt can both support wheel stops, but the anchor type must match the surface. Cracked pavement, thin asphalt, deteriorated concrete, or areas above underground utilities may require repair, a revised layout, or a different installation approach.
Choose the Right Wheel Stop and Anchor System
Parking wheel stops are available in several materials, including concrete, recycled rubber, and molded plastic or composite options. The right choice depends on traffic levels, climate exposure, maintenance expectations, and the appearance required for the property.
Concrete wheel stops are heavy and familiar, but they can crack, chip, and shift when struck. Rubber and molded wheel stops are often easier to handle, more resistant to impact damage, and less likely to create sharp broken edges. For parking lots with frequent snow removal, consider how the product profile, visibility, and fasteners will perform around plow blades and de-icing operations.
Anchors are not an afterthought. They are the component that keeps the wheel stop from moving under repeated tire contact. Typical options include steel spikes for asphalt, concrete anchors for concrete slabs, and specialized fasteners for specific wheel stop designs. Use the anchor quantity and diameter recommended for the selected product. Reducing the number of anchors to save time is false economy.
For a standard commercial installation, have these items ready before work starts:
- Wheel stops and manufacturer-approved anchors
- Tape measure, chalk line, marker, and string line
- Rotary hammer or hammer drill with the correct bit
- Sledgehammer or impact tool for approved asphalt spikes
- Broom, compressed air, or vacuum for cleaning drilled holes
- Safety glasses, gloves, hearing protection, and traffic control equipment
How to Install Parking Wheel Stops on Concrete
Concrete installations demand accurate drilling and clean holes. Begin by closing off the work area. Vehicles and pedestrians should not move through an active drilling zone, particularly in live retail, school, or multi-tenant parking areas.
Mark the final placement line for each stall. A string line is useful for long rows because it keeps every wheel stop aligned. Place each unit on the marked line and check its position against the curb, sidewalk, wall, or other protected feature. Measure more than one space. If the first wheel stop is wrong, an entire row will be wrong.

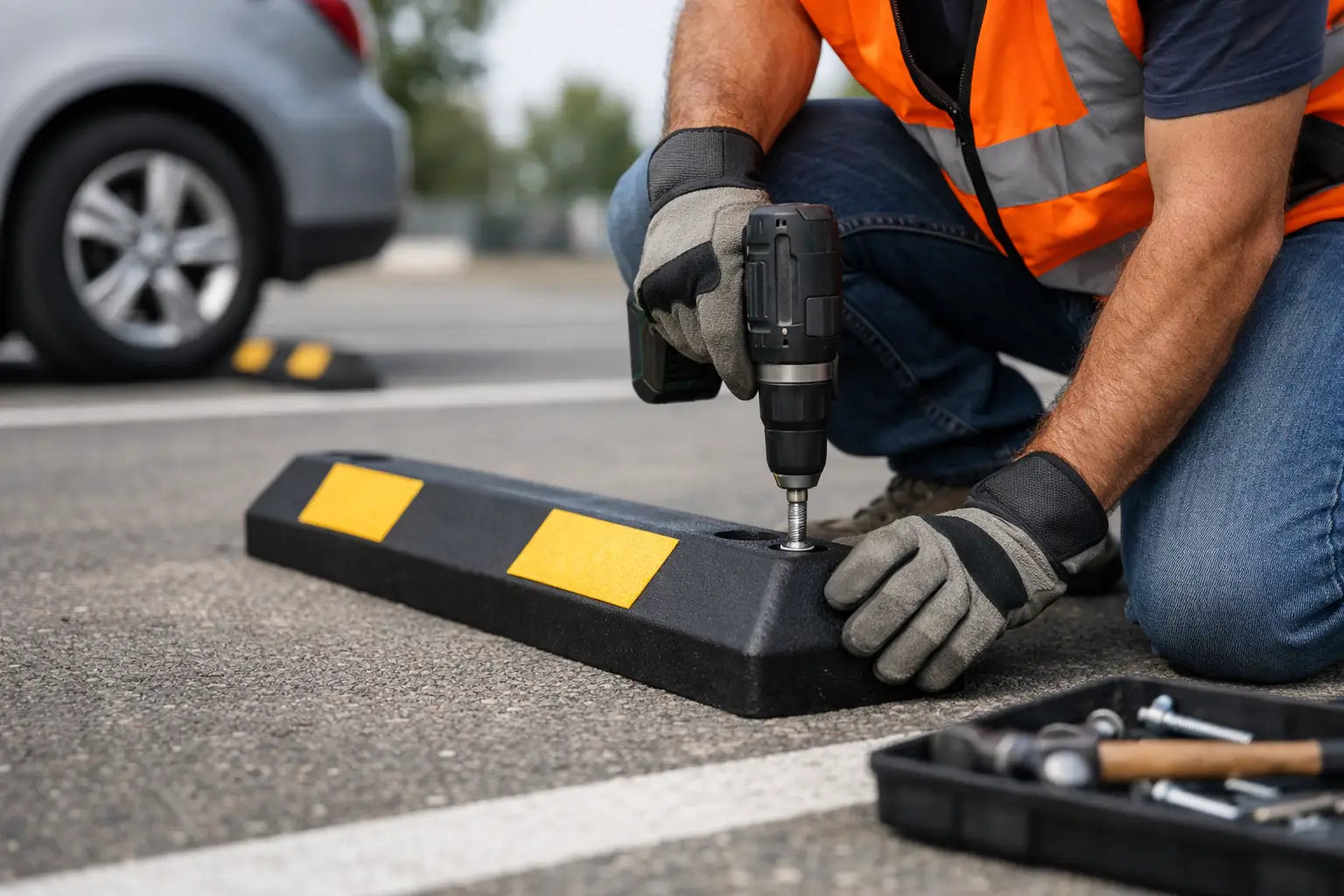

Once the wheel stop is positioned, mark the anchor holes directly through the product. Move the wheel stop aside and drill the holes to the required depth using a properly sized masonry bit. Drill vertically. Angled holes can prevent the anchor from seating correctly and may pull the wheel stop out of alignment during tightening.
Clean each hole thoroughly. Dust left in a drilled concrete hole can reduce anchor grip and compromise holding performance. Reposition the wheel stop, insert the anchors, and tighten or drive them according to the anchor system requirements. The unit should sit flat against the pavement without rocking.
Do not overtighten fasteners into a molded rubber or plastic wheel stop. Excessive force can distort the anchor opening or damage the product. The objective is secure contact with the pavement, not crushed material around the fastener.
Installing Wheel Stops on Asphalt
Asphalt installation requires a different judgment call. New asphalt may be too soft to hold spikes properly, while older asphalt may be brittle or too thin for dependable anchoring. Verify the pavement thickness and condition before committing to the layout.
For approved asphalt spike installations, position and mark the wheel stop as you would on concrete. Drive spikes straight through the anchor openings using the recommended method. Keep the wheel stop level while driving each spike. If one side is pulled down too aggressively before the others are seated, the unit can twist or sit unevenly.
Avoid placing anchors close to broken asphalt edges, patches that are already failing, drains, or expansion areas. A wheel stop can be new and correctly installed yet still move if the surrounding pavement is weak. In those conditions, repair the surface first or use a system designed for the substrate.
If the asphalt is installed over concrete, confirm what lies beneath before drilling or driving. Surface assumptions cause damaged slabs, failed anchors, and avoidable rework.
Check Alignment, Clearance, and Visibility
Installation is not complete when the last fastener is in place. Walk the row from both directions and inspect alignment. Wheel stops should form a consistent line, sit flat, and show no movement under controlled foot pressure.
Check pedestrian clearance at sidewalks and accessible routes. A wheel stop that protects a wall but narrows a walkway can create a new liability. Review its relationship to curb ramps, accessible parking markings, loading zones, and door swing areas.
Visibility also matters. Wheel stops should be easy for drivers to see under normal site lighting and in poor weather. High-contrast material, reflective markings, and proper lot lighting help reduce impacts. In snow-prone regions, include wheel stops in the seasonal inspection plan. Plows, loaders, and accumulated snow can obscure or damage parking controls.
Avoid These Common Installation Failures
The most common failure is inconsistent placement. Installers may set each wheel stop by eye, resulting in uneven rows and unpredictable vehicle positioning. Use measured marks and string lines instead.
The second failure is using the wrong anchor for the pavement. Concrete anchors in weak asphalt, short spikes in thin pavement, or unapproved hardware can all lead to loose units. Match the anchor system to both the wheel stop and the site surface.
A third issue is skipping pavement assessment. Installing over severe cracks or deteriorated patches transfers the problem to the finished work. The wheel stop cannot strengthen failed pavement.
Finally, do not ignore ongoing maintenance. Inspect wheel stops after winter, resurfacing work, vehicle strikes, and major site activity. Replace broken units and reset loose anchors promptly. A shifted wheel stop is not just untidy - it can become a tire hazard, trip hazard, or property damage risk.
For dependable parking control, treat wheel stops as part of the site protection system, not as an accessory added at the end of a project. Bollard Canada supplies commercial-grade parking and traffic protection products built for the demands of active properties. Start with accurate layout, use the correct anchors, and inspect the finished line before reopening the area to traffic.
